Live
Open live site ↗TrueFit CV
Creator, AI SaaS|Next.js / Express / Redis / LLM provider
TLDR
CV and job-fit product with scoring, generation, credits, and a job-hunt agent. Next.js, Express BFF, Redis, Postgres, and LLM provider on Docker Compose. Node stack by design.
Context. Candidates need a clear score against a job, a rewritten CV grounded in their experience, and application drafting without duplicate credit spend.
Next.jsExpress
TypeScriptPostgresRedisLLM providerobject storagepayment provider
DockerArchitecture

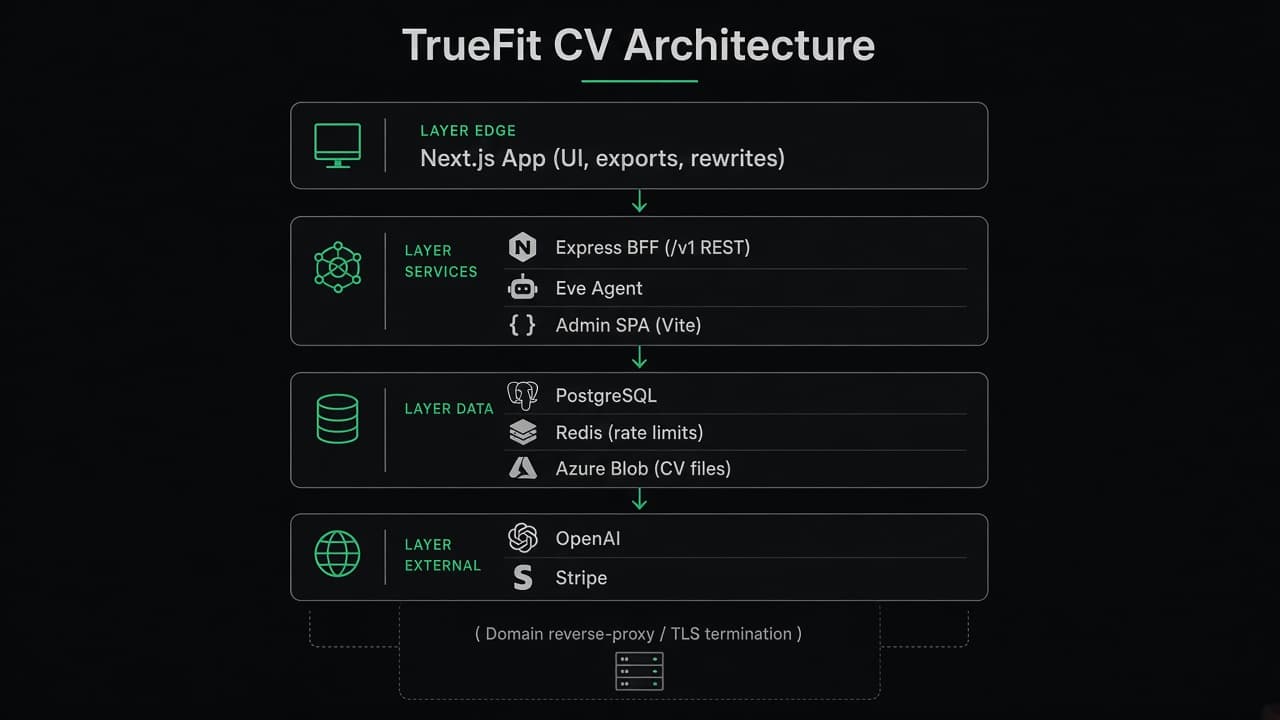

System diagram
Component map
As deployed
Edge
Next.js app
UI, exports, rewrites
Services
Express BFF
/v1 REST
Eve agent
Tool-calling job agent
Admin SPA
Vite
Data
PostgreSQL
Users, CVs, billing
Redis
Rate limits
object storage
CV files
External
LLM provider
Analyst, Curator, Eve
payment provider
Credits and subscriptions
What shipped
- One domain, four services: Next.js web, Express BFF, Eve agent, admin SPA
- Two-step generation: Job Analyst then CV Curator, both on strict JSON schemas
- Redis for rate limits; JWT in httpOnly cookies; Postgres for product data
- Credits and subscriptions enforced with Postgres triggers and payment provider webhooks
- Eve can search jobs and draft applications, but submit needs explicit approval
- Product analytics and feature flags for measuring and gating release risk
Backend
- Express REST under /v1 for auth, CVs, generations, jobs, applications, payments, and admin
- Next.js rewrites /bff, /eve, and /admin to internal services
- Object storage for CV uploads, with local disk in development
- Redis-backed AI rate limiting, with an in-memory fallback
- Eve calls the BFF with internal service auth; no silent auto-apply
Request and event flow
- 01User uploads a CV and a job description
- 02Job Analyst extracts requirements and scores fit from 0 to 100
- 03CV Curator produces structured CV JSON and a cover letter from that brief
- 04Generation insert meters credits, or skips metering for an active subscription
- 05Eve can search jobs and draft applications; submit only after approval
API domains
- Auth and Google OAuth
- CV upload and extract
- Generations and design pipeline
- Jobs and preferences
- Applications
- Payment provider checkout and webhook
- Guest analyze
Key decisions
- Use Next.js as the edge UI and reverse proxy so /bff, /eve, and /admin stay one origin for the browser while services stay separate behind the scenes.
- Split generation into Job Analyst then CV Curator. Scoring and rewriting stay separate, which keeps outputs stricter and easier to debug.
- Meter credits with a Postgres trigger on generation insert so billing cannot race the app layer. Active subscriptions skip metering.
- Put Redis in front of AI and guest rate limits. If Redis is unavailable, fall back to in-memory limits instead of allowing unlimited requests.
- Store CV files in object storage. Keep the API, Eve agent, and web app on one Docker Compose host behind Next.js rewrites.
- Eve can search jobs and draft applications, but employer contact only happens after explicit user approval.
